Playout & IP Streaming

AirBox Neo-20 provides automated content streaming and broadcast playout for any kind of TV channel – cloud-based, satellite, cable head-ends, over-the-air broadcasters, corporate TV, internet-based TV and etc.
AirBox Neo-20



What's next

1. SRT Output Support:

  • Low latency, secured and reliable, hi-quality steam delivery via public internet
  • Caller, Listener and Rendezvous modes
  • Connection to more than one location in Listener mode (main and back up locations)
  • AES-128 encryption for content protection
  • Password protection - you can generate and send a dedicated password, so only the receiver part can decrypt and decode the stream
  • Latency parameter control - tweaking the latency to counteract the inferior

SRT ready


2. New Integrated Input/Output architecture shared among AirBox Neo-20 and the new Capture Suite

3. NDI, AJA SDI, Blackmagic Decklink Inputs/Outputs

4. Simultaneous outputs in different video standards and frame rates from the same source

5. Built input to output(s) switching

6. NEW Product: Web-based Multi-Viewer:

Input Resolution: UHD / HD / SD support
Inputs: AJA, BMD and NDI support - automatic input video standard recognition
Dashboard with built-in resource monitor

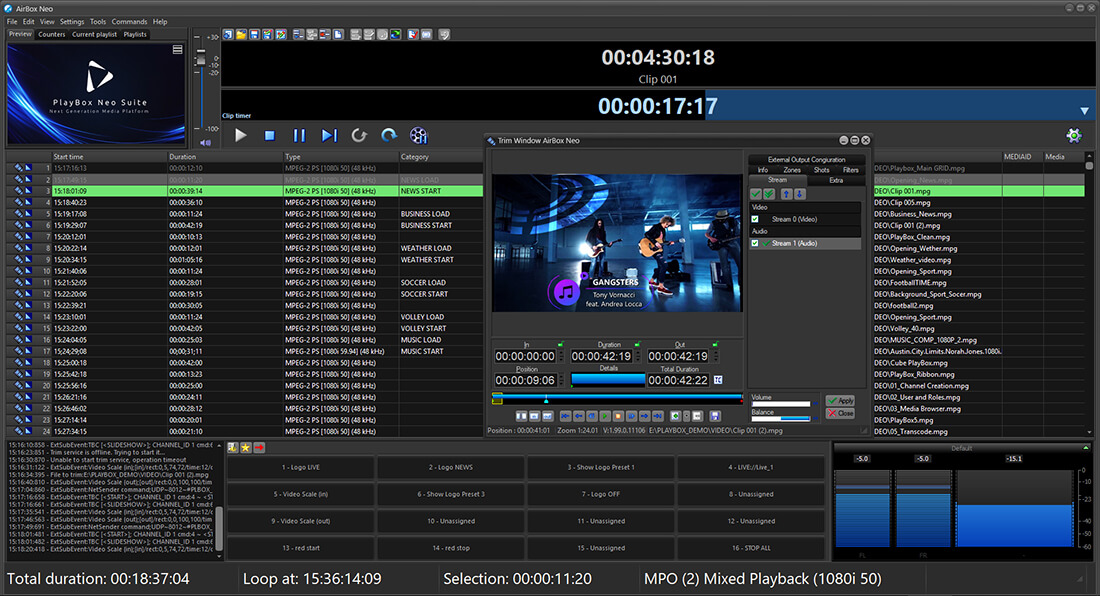

AirBox Neo-20



Via its scalable, extremely robust and reliable multi-format parallel output playout/streaming engine, AirBox Neo-20 can easily mix a variety of media files in one playlist and provides multiple SDI/IP streaming UHD/HD/SD outputs simultaneously.

Endless freedom of operation - any changes to the playlist during on-air sessions are possible! Media can be trimmed, edited or repositioned. Live productions are streamlined to allow insertion and/or execution of various events or live streams into the playlist.

For automated playout/streaming AirBox Neo-20 allows playlist scheduling for weeks ahead. Gaps/Time overlaps are automatically resolved to ensure continuous operation even when conflicting timed events are present. Special facilities ensure uninterrupted operation if content files or even entire schedules are missing or misplaced.

AirBox Neo-20 Features

  • Cloud and in-premise based installation
  • Mixing different media formats, frame rates and resolutions in a single playlist
  • Supported output video standards: 4K UHD / HD / SD
  • Multiple simultaneous outputs – IP and SDI at the same time
  • Live Input: UHD/HD/SD SDI, IP stream - MPEG-2 TS (UDP/RTP), HTTP(S), RTMP, MMS(H), NDI input
  • Output: UHD/HD/SD SDI and UDP/RTP/RTMP Stream output in accordance with DVB & ATSC standards
  • Compatible with a vast variety of compression types: MPEG-2, DV, DVCAM, DVCPro, DVCPro 50, DVCPro HD, IMX, XDCAM, HDCAM, AVC/H.264, HEVC/H.265, XAVC, Apple ProRes, DNxHD, AVC-Intra, etc.
  • Supports a multitude of media containers: MPEG-2 (PS/TS), AVI, MOV, MP4, MPX OP1a, WMV
  • Active Format Description - SMPTE2016-3
  • SCTE 104 / 35 trigger generation for commercial insertion
  • SCTE-104 Decoding for Digital Program/Commercial Insertion (optional)
  • Closed caption playout support (embedded or external MCC 1.0 / 2.0) for EIA 608, EIA 708 and XDS
  • Built-in static and animated logos support
  • Simultaneous video scaling of both live input and playlist output
  • Video transformations: Transitions, Up/Down/Cross & Frame Rate conversions
  • Playback of clips still being ingested
  • On-air subtitling burning (SUB, PAC, EBU, SRT)
  • Multi-channel Audio support
  • Dolby Digital Plus and Dolby-E audio media playback and output
  • Automatic audio routing and remapping based on audio language, type and other metadata
  • Automatic Loudness Control (subject on file assessment)
  • Metadata support for text-rich graphics insertion
  • Playlist export to EPG generators
  • Streaming encoding could use nVidia NVENC hardware encoding

Built-in Playlist Preparation

  • Advanced time-based scheduling with automated conflict resolving
  • Playlist Import from 3rd party Traffic Software and *.CSV file
  • Detailed Logging (AsRun log, System log) for verification and playlist reconciliation

Automation

  • 3rd party equipment control - Kramer, Leitch, Network Electronics, Pesa, Quartz, Grass Valley Concerto / Acapella, Sierra, Elpro, Snell, Utah, Miranda Technologies, Ross, BlackMagic Video Hub, BlackMagic ATEM TV Studio, GPI, DTMF, etc.
  • Control plug-in for PlayBox TitleBox Neo CG & Graphics playout
  • Control plug-in for Capture Suite
  • Control under external automation via VDCP, GPI, DTMF, Network API, SCTE-104, etc.
  • 1:1 and N:M Redundant Playout

AirBox Neo-20 Specifications

Standard Compliancy

  • Distribution video over IP standard compliancy - SMPTE 2022-2 SMPTE 2022-3
  • SDI Compliant standard compliancy - SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 425M, SMPTE 435, SMPTE 2081, SMPTE 2082
  • Vertical Ancillary Data Mapping - SMPTE2016-3 (AFD)
  • Audio loudness according to ITU-R BS.1770, ATSC A/85, EBU R128
  • SCTE 104 / 35 trigger generation
  • SCTE-104 trigger decoding


Optional module

Multi-Backup Manager (MBM) - designed for backing up multiple playout channels simultaneously. Also known as “N:M” redundancy, MBM allows the user to choose the number of backup systems, reducing overall system cost while maintaining system integrity.

Multi-Backup Manager



PlayBox Neo is registered trademark. Other mentioned trademarks are property of their respective holders.
SurCode for Dolby Digital is manufactured under license from Dolby Laboratories. Dolby and the double-D symbol are trademarks of Dolby Laboratories. nVidia is a trade mark of nVidia Inc.



For price inquiries, please contact us.
